Features
Power options:
- 12 or 24 Volt battery
- Petrol power pack
- PTO/pump
MENU

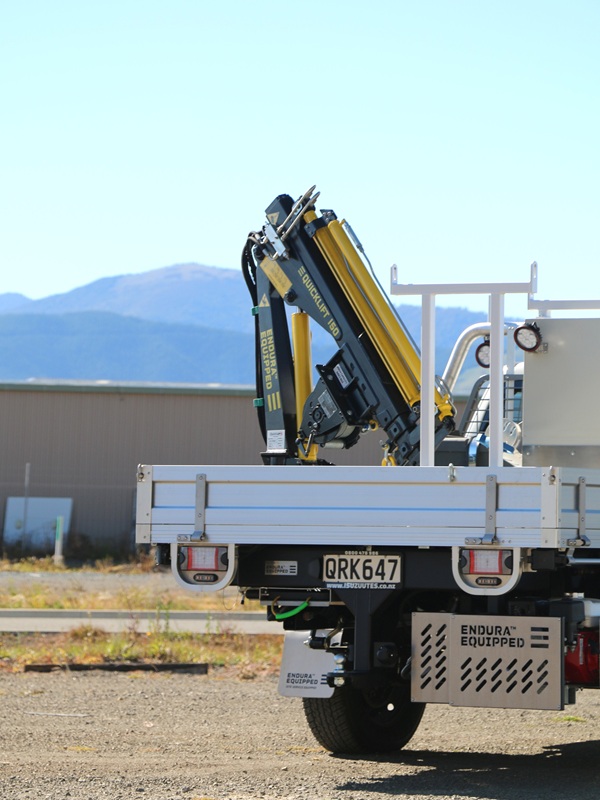

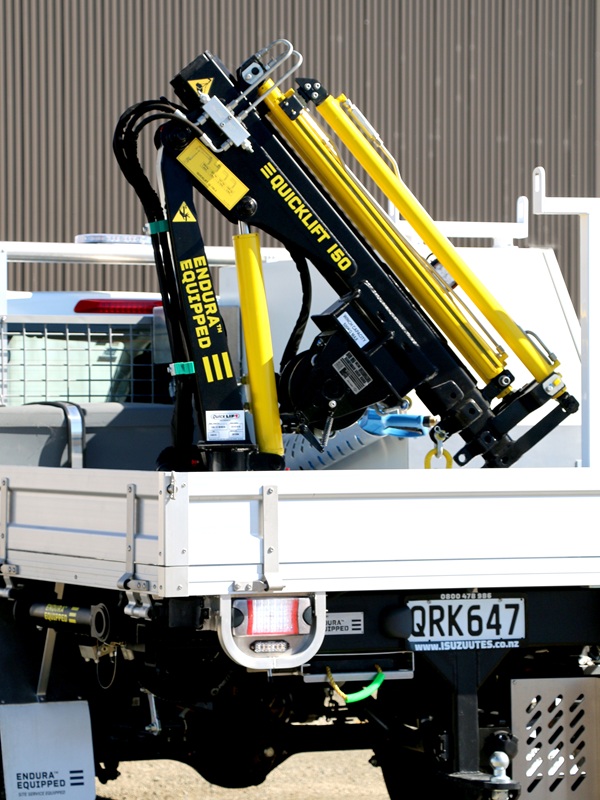

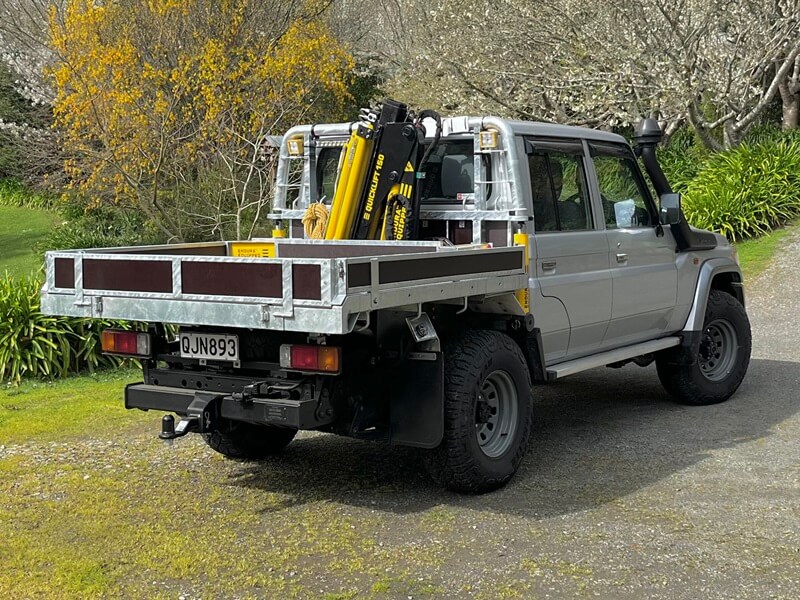

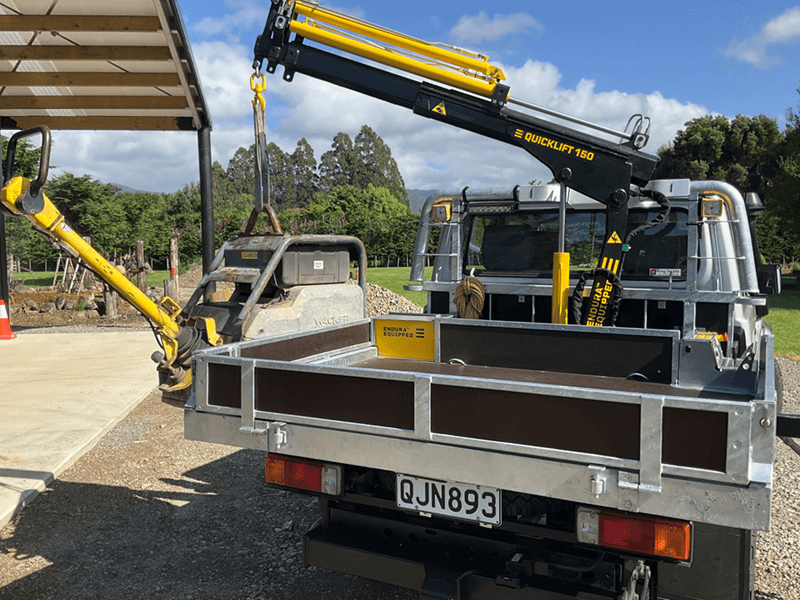

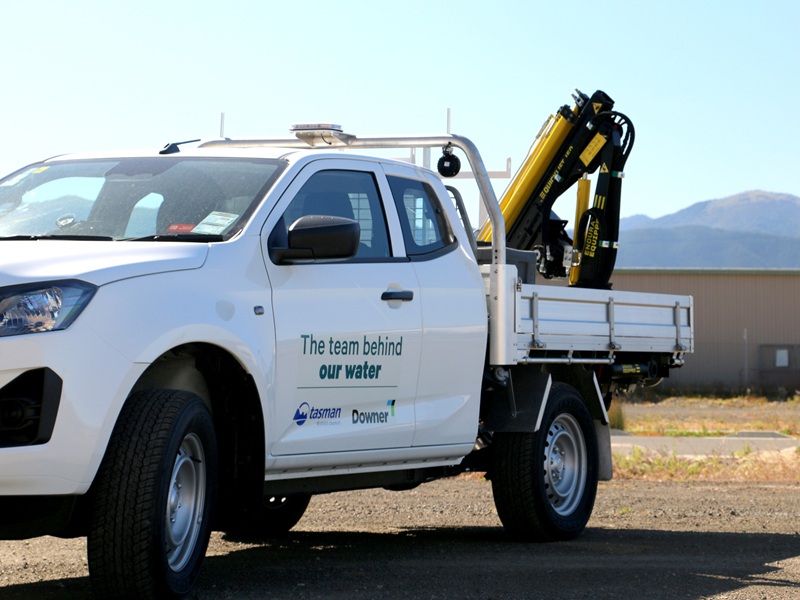

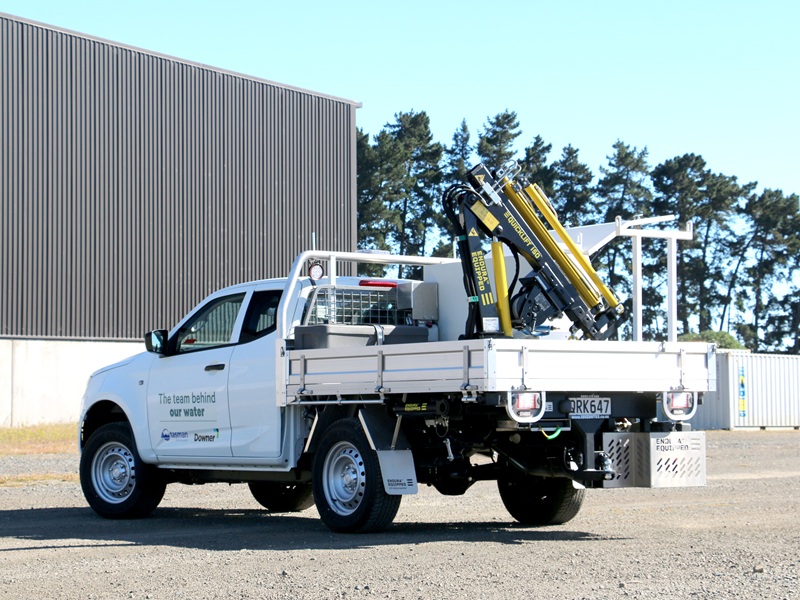

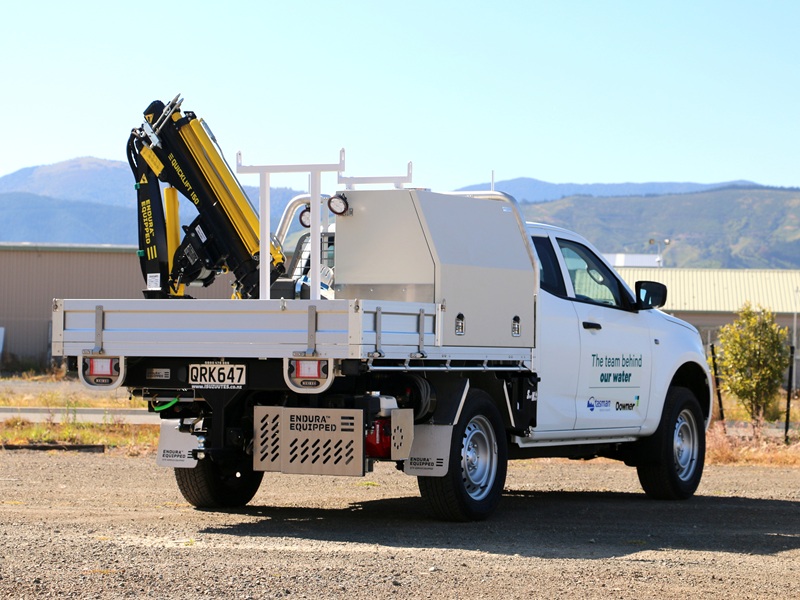

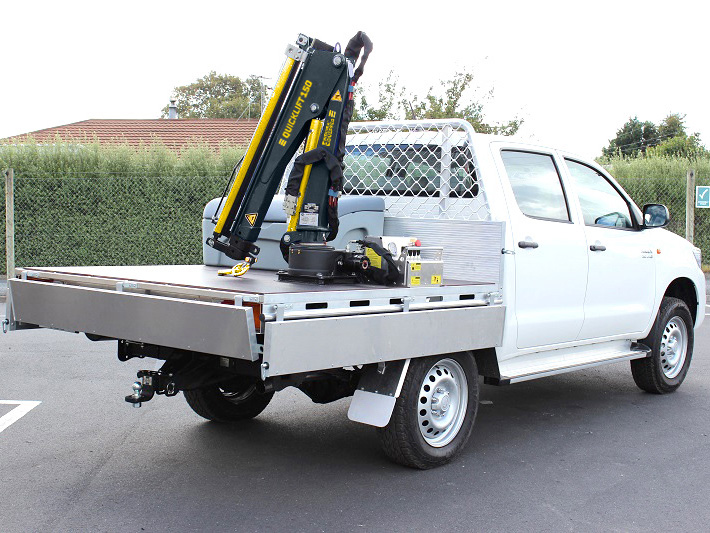

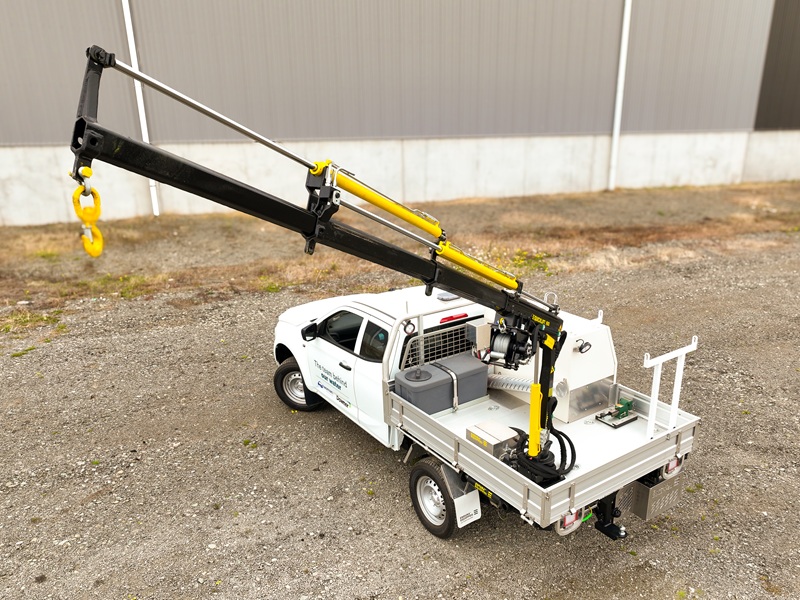

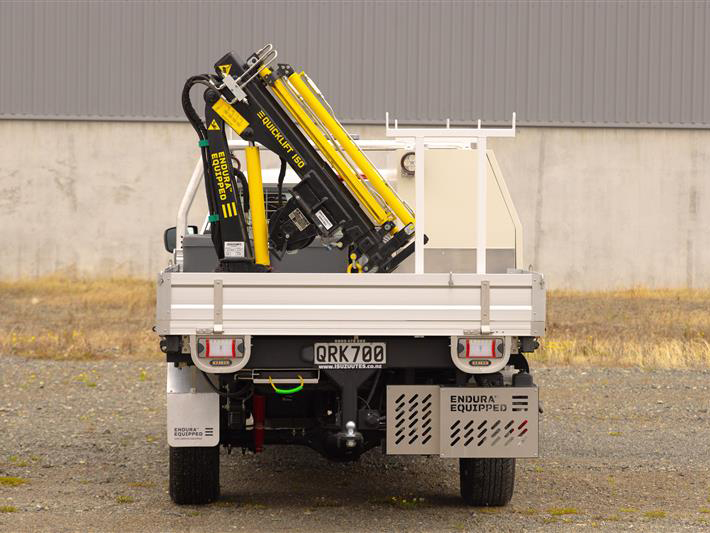

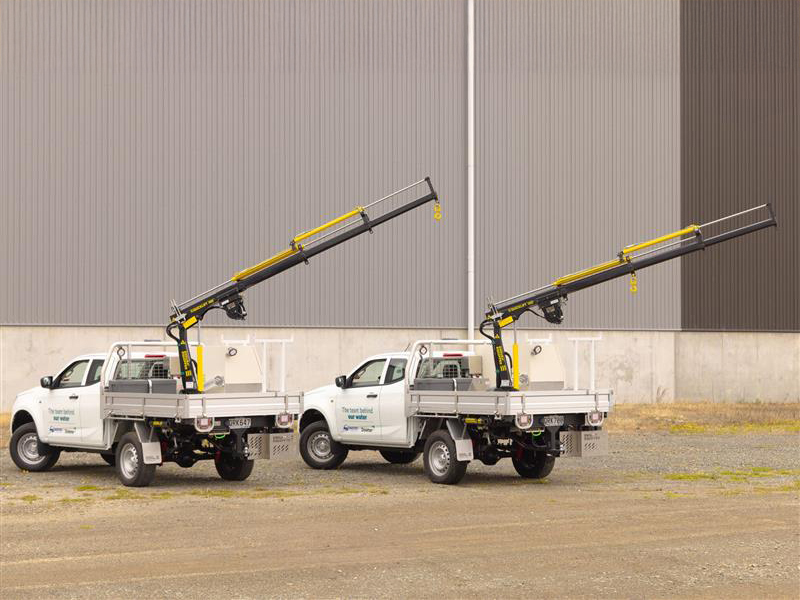

Our QL150 range is designed to get maximum lift from a ute or trailer mounted crane. The crane’s powerful, smooth operation allows you to get the job done safely and efficiently. Quicklift® are also a great addition to light trucks, agricultural equipment and much more.
Quicklift® 150 cranes offer:
$11,455.50
Power options:
Accessory options including:

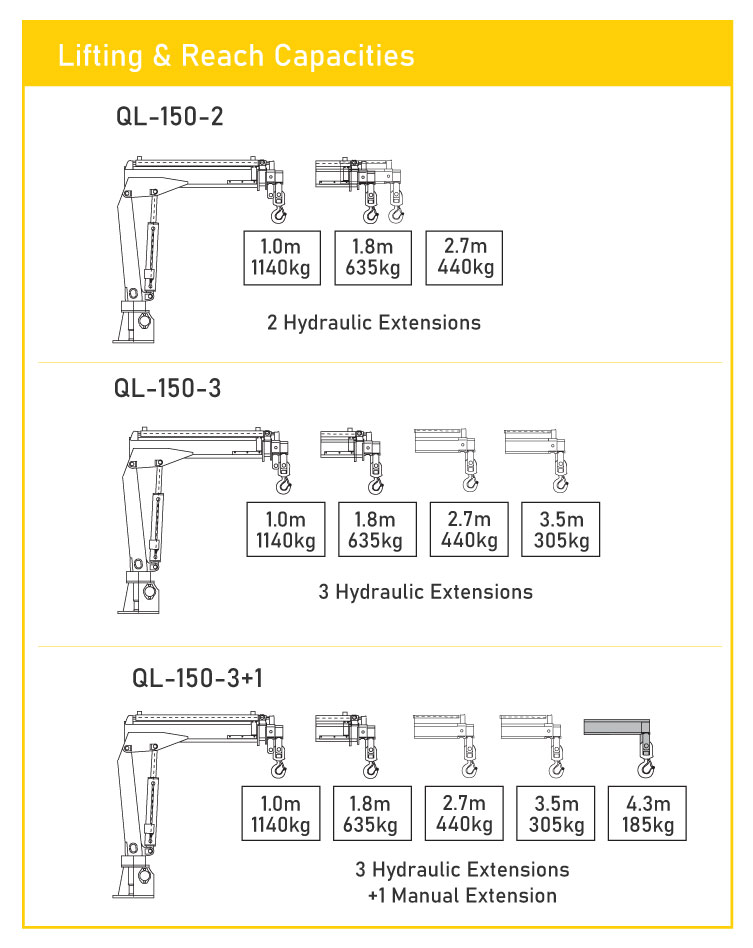

| QL150-2 | QL150-3 | QL150-3+1 | |
| Size T/M | 1.2 | 1.2 | 1.2 |
| Max Lift | 1140kg | 1140kg | 1140kg |
| Distance at Max Lift | 1.0m | 1.0m | 1.0m |
| Max Reach | 2.70m | 3.50m | 4.30m |
| Weight at Max Reach | 440kg | 305kg | 185kg |
| Standard Crane Weight | 165kg | 187kg | 187kg |
| Base Frame Weight | 80kg | 80kg | 80kg |

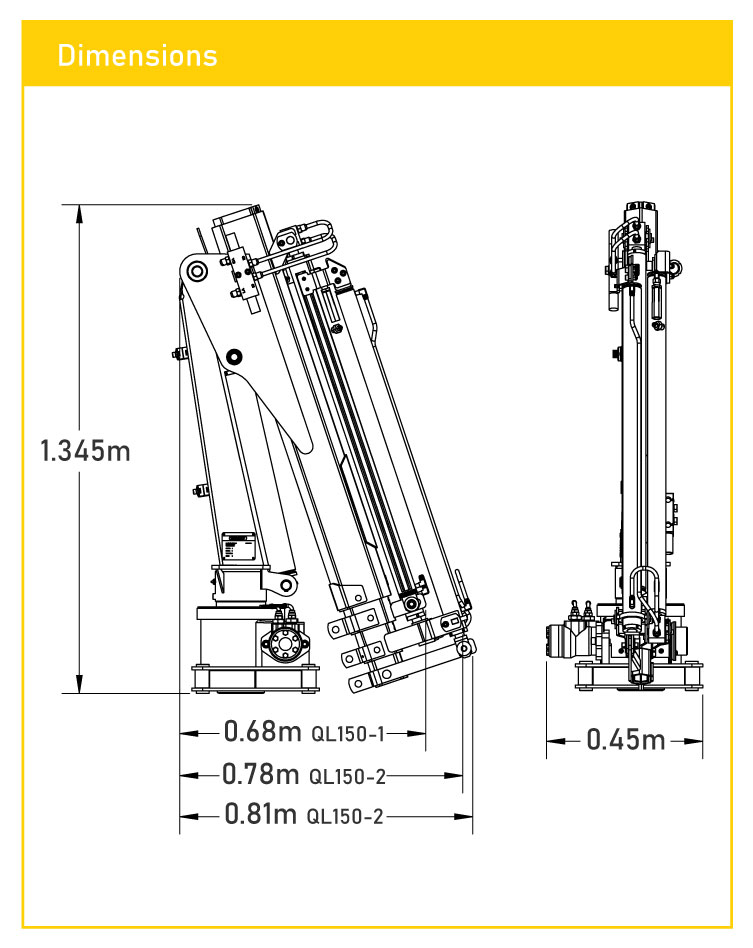

| Stowed Crane Height | 1.24m | 1.24m | 1.345m |
| Stowed Crane Length | 0.66m | 0.66m | 0.68m |
| Stowed Crane Width | 0.31m | 0.31m | 0.45m |
| Mounting Spaces | 0.31m | 0.31m | 0.31m |
Warranty
3 year warranty for structural parts (base column and boom) and 12 months for all other components.
