Name: QL350 Compact Crane - Endura Equipped
Price: 15473.50 NZD
Availability: InStock

QL350 Compact Crane

by Quicklift®

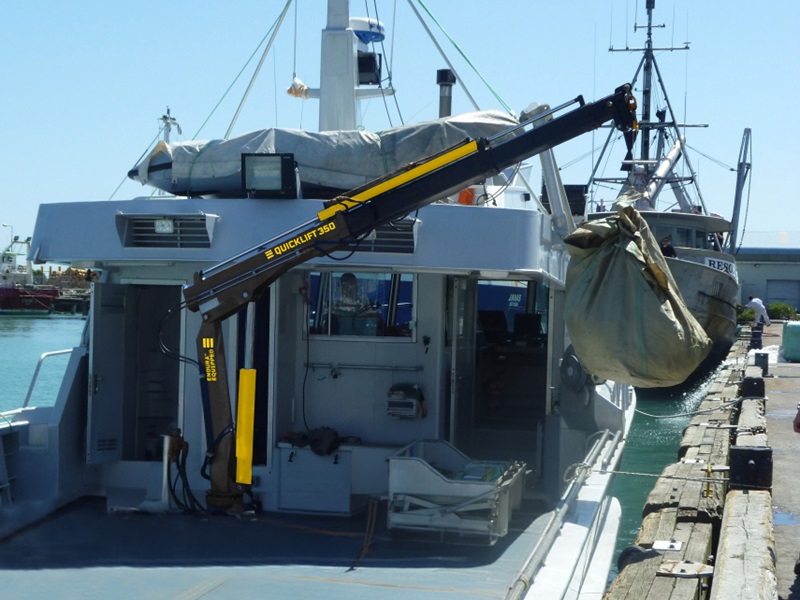

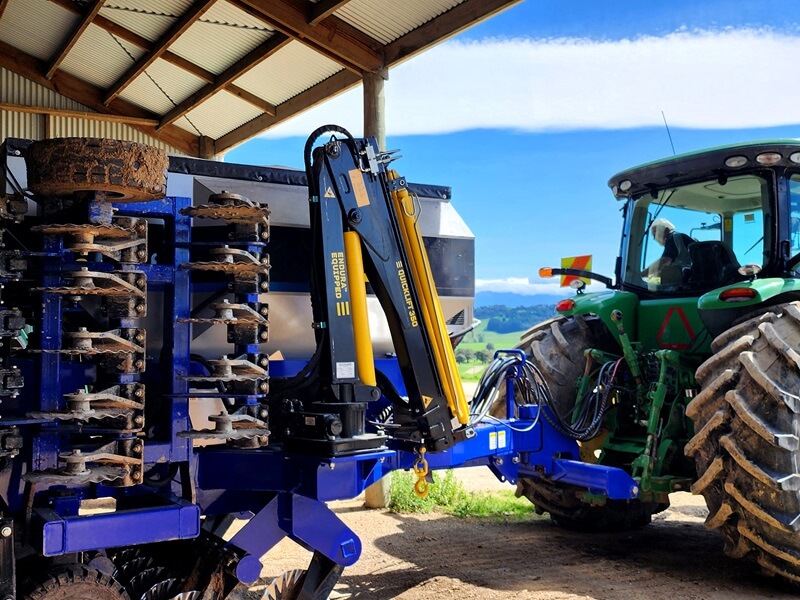

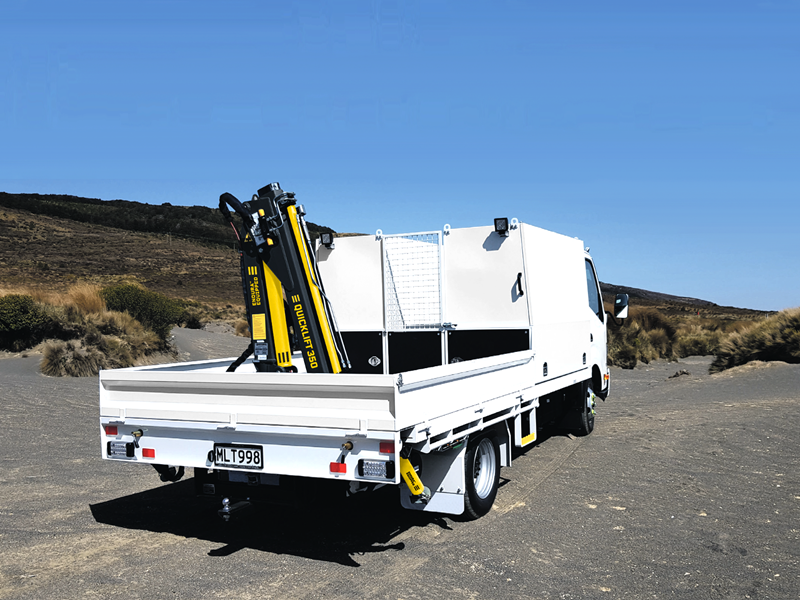

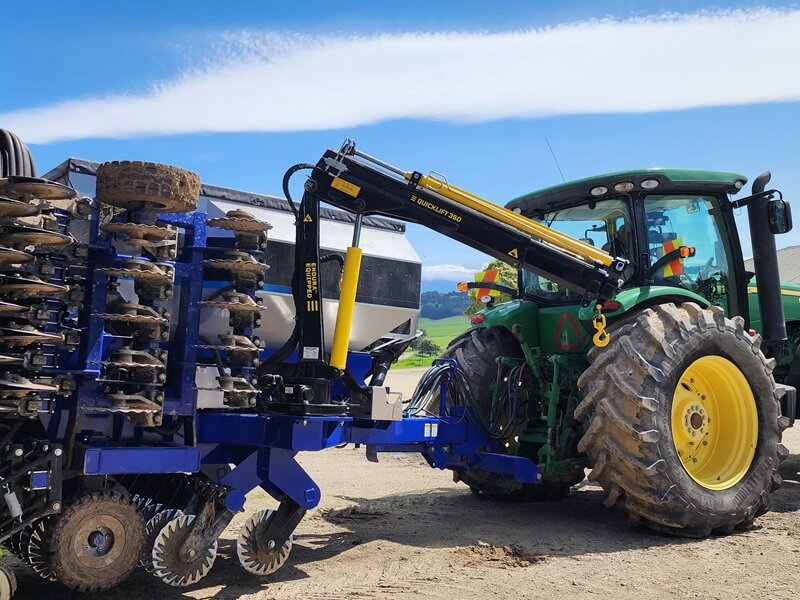

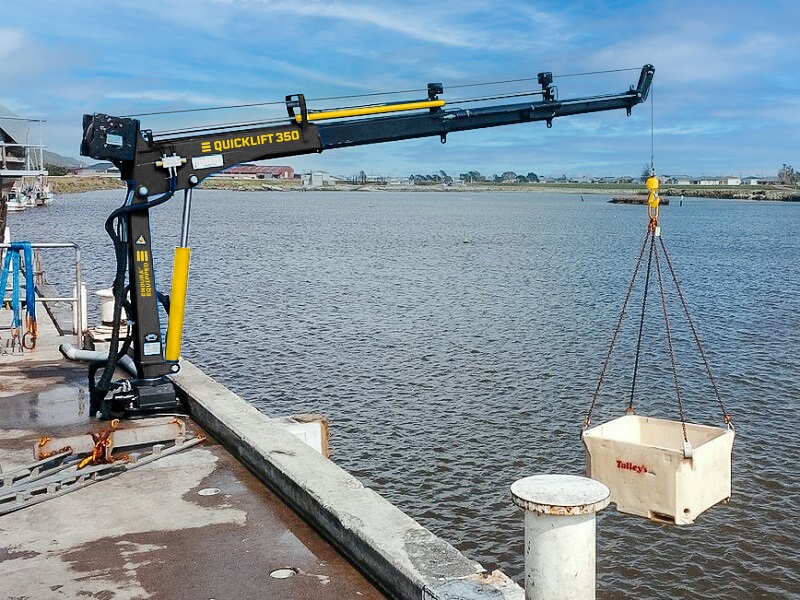

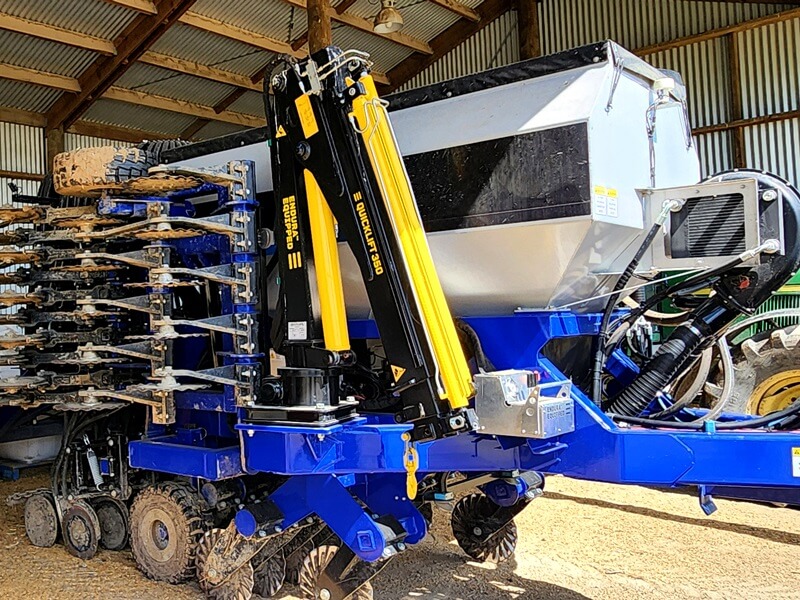

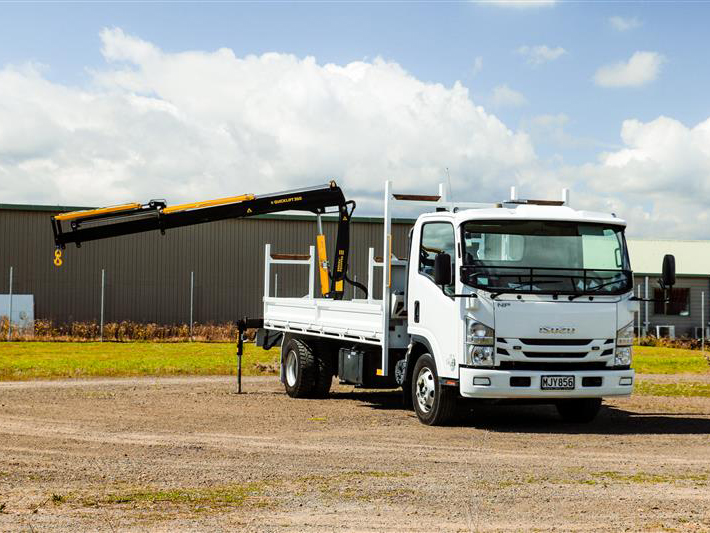

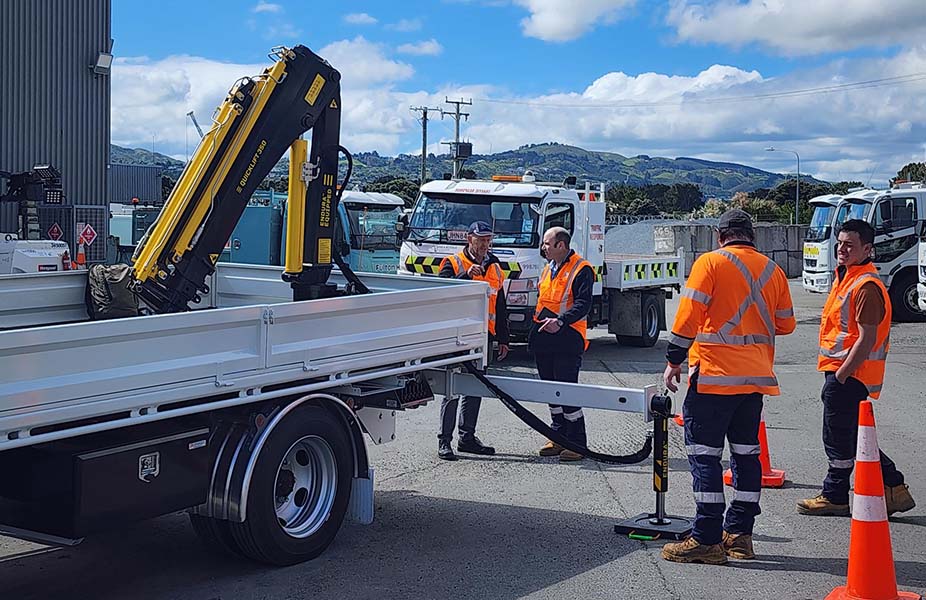

Our big lifter. The QL350 is a proven serious lifting performer on many light trucks, seed drills and small fishing and work boats plus a range of many other applications. The crane’s powerful, smooth operation allows you to get the job done safely and efficiently.

From

$15,473.50

Excl GST and freight

Crane Model

Clear

Features

Our big lifter. The QL350 is a proven serious lifting performer on many light trucks, seed drills and small fishing and work boats plus a range of many other applications. The crane’s powerful, smooth operation allows you to get the job done safely and efficiently.

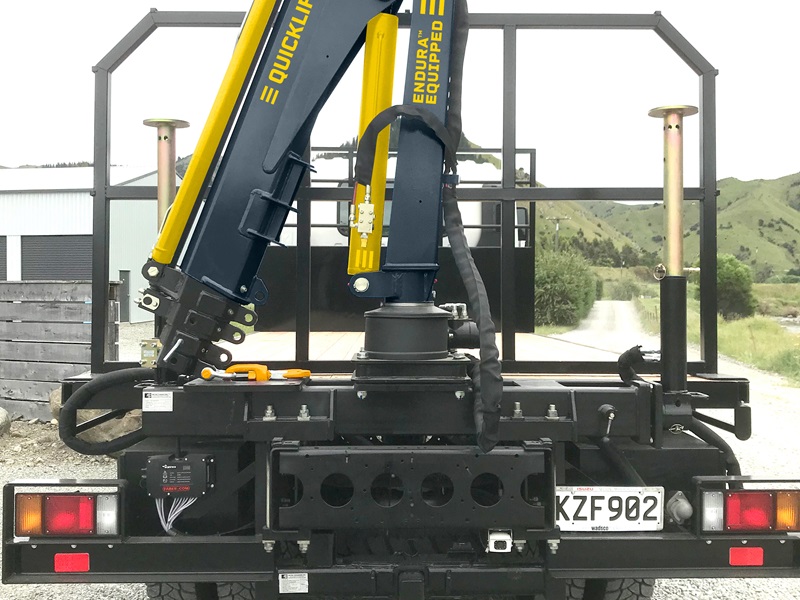

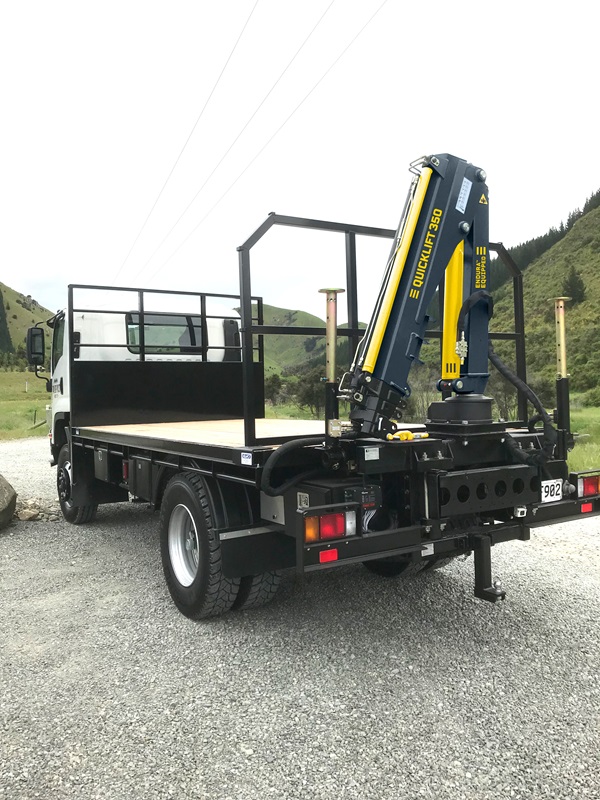

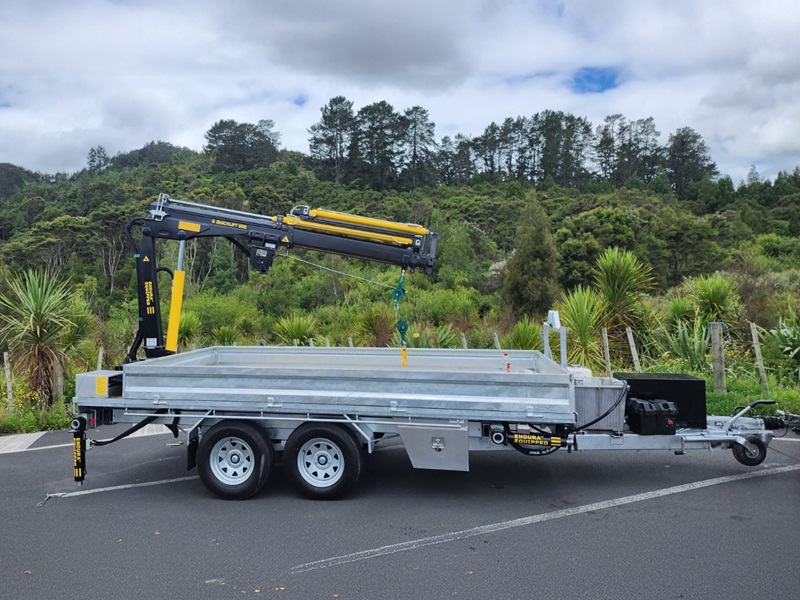

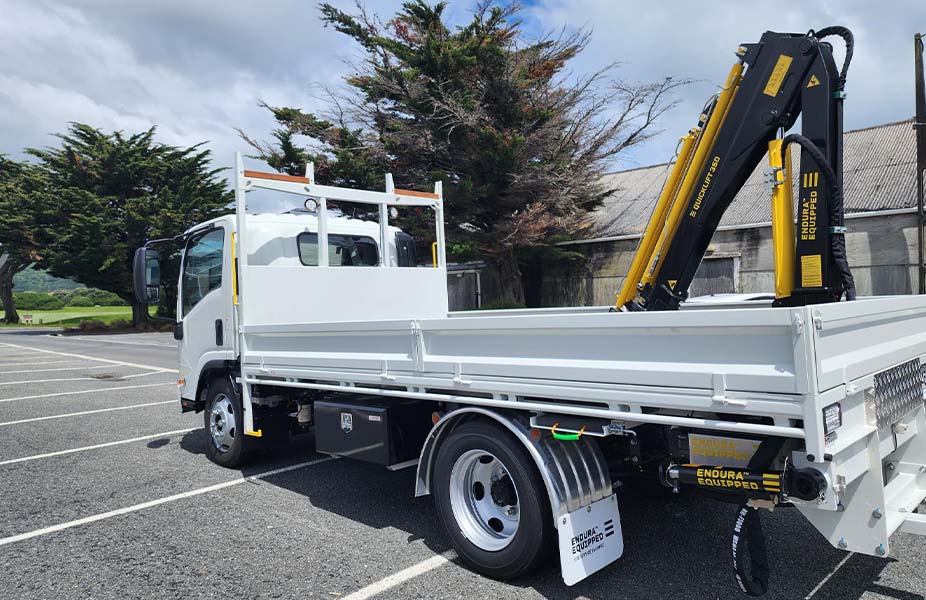

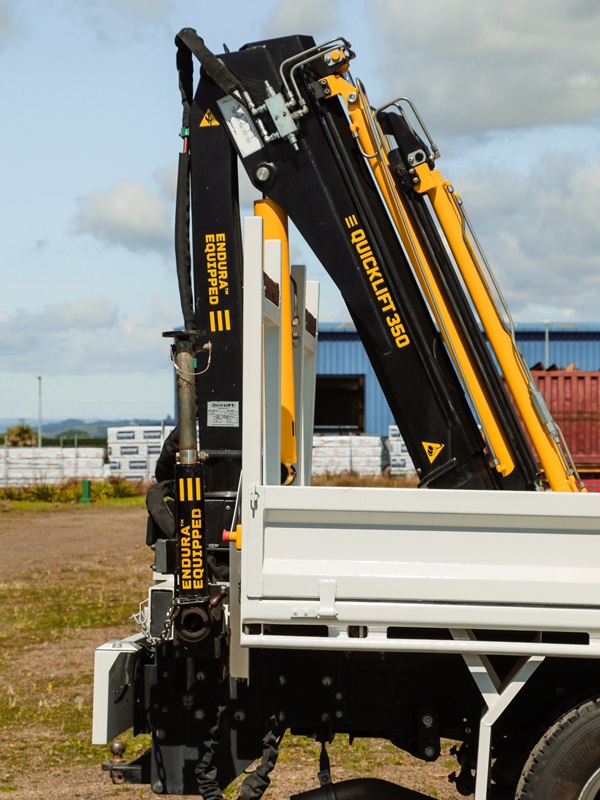

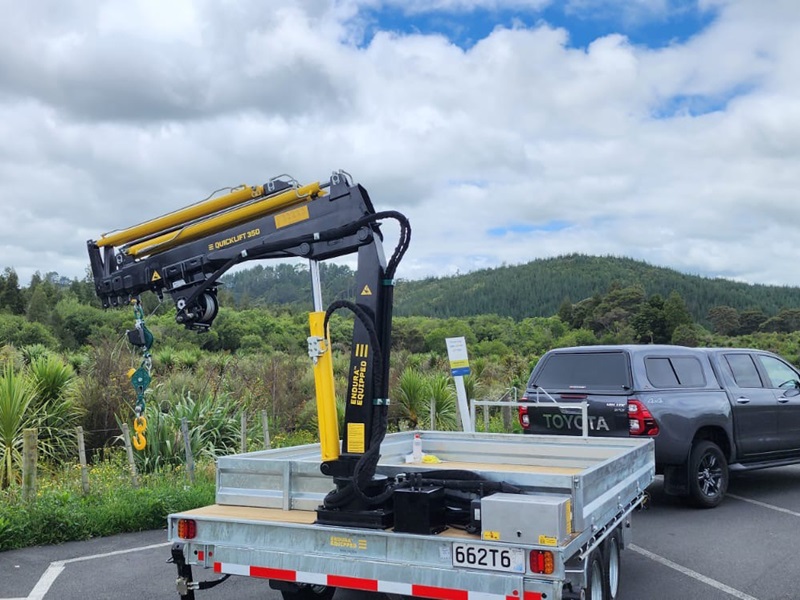

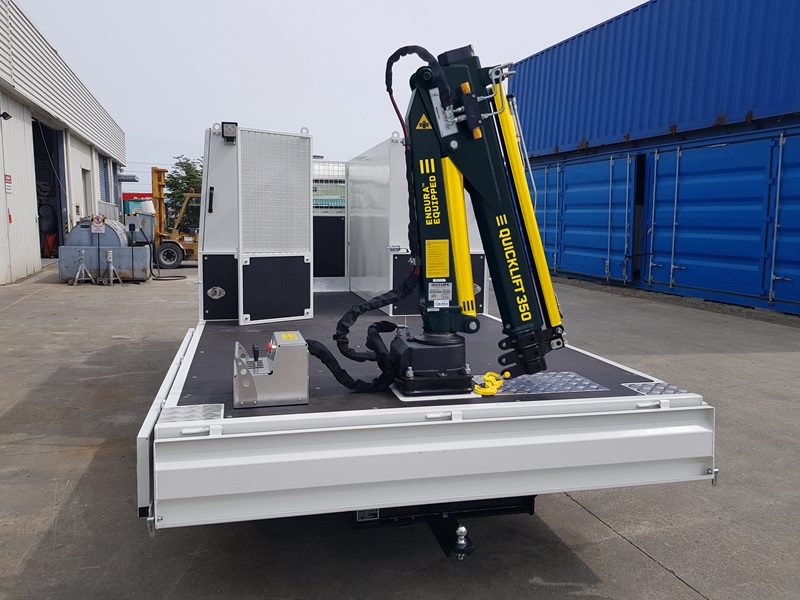

Quicklift cranes have a compact foot print and the ultra compact stowing position and optional base frame (designed to be hidden under the deck) enable you to optimize space use around the crane. This makes Quicklift a great add-on for light trucks, utes, agricultural equipment trailers, plus much more.

Quicklift cranes have:

A modular installation system
Extensive accessory options, such as radio control, winch options, marine paint finish, pallet forks
The option of horizontal reach up to 6.7m with the QL350-4+1.

The crane can be powered by your choice of power pack, choose 24 Volt battery, petrol power pack or PTO/ Pump.

Specifications

	QL350-2	QL350-3	QL350-4
Build Type	BT20-7	BT20-8	BT20-9
Crane Manufacturer	Quicklift	Quicklift	Quicklift
Crane Model	QL350-2	QL350-3	QL350-4
Size T/M	3.2	3.2	3.2
Specification/Type	Compact	Compact	Compact

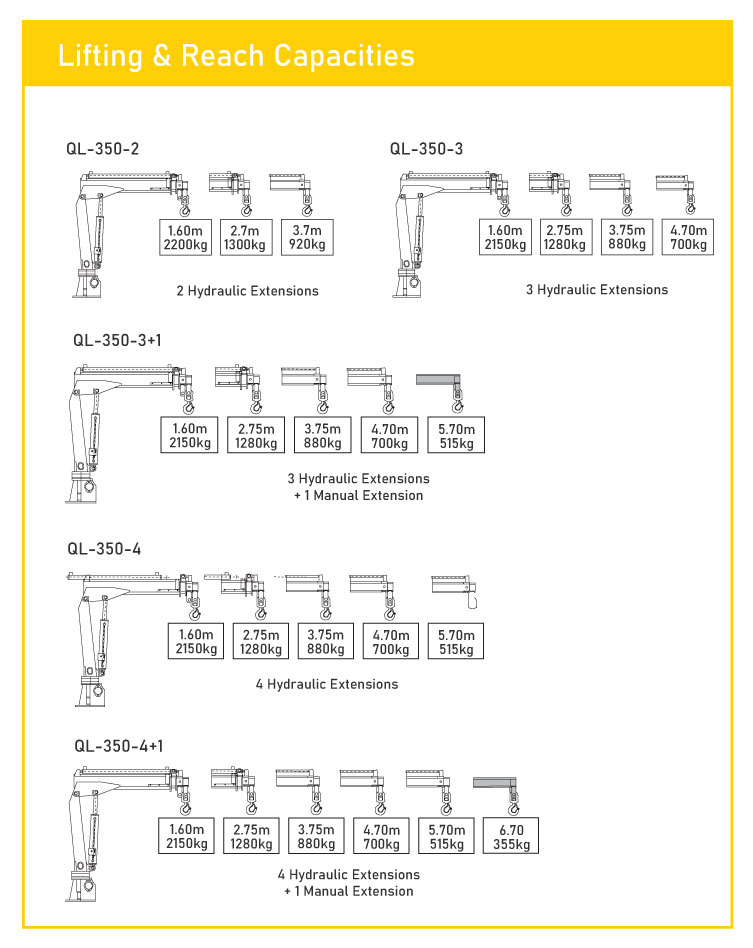

Max Lift	2200kg	2150kg	2100kg
Distance at Max Lift	1.60m	1.60m	1.60m
Max Reach	3.70m	4.70m	5.70m
Weight at Max Reach	920kg	700kg	380kg
Standard Crane Weight	320kg	350kg	418kg
Base Frame Weight	105kg	105kg	105kg

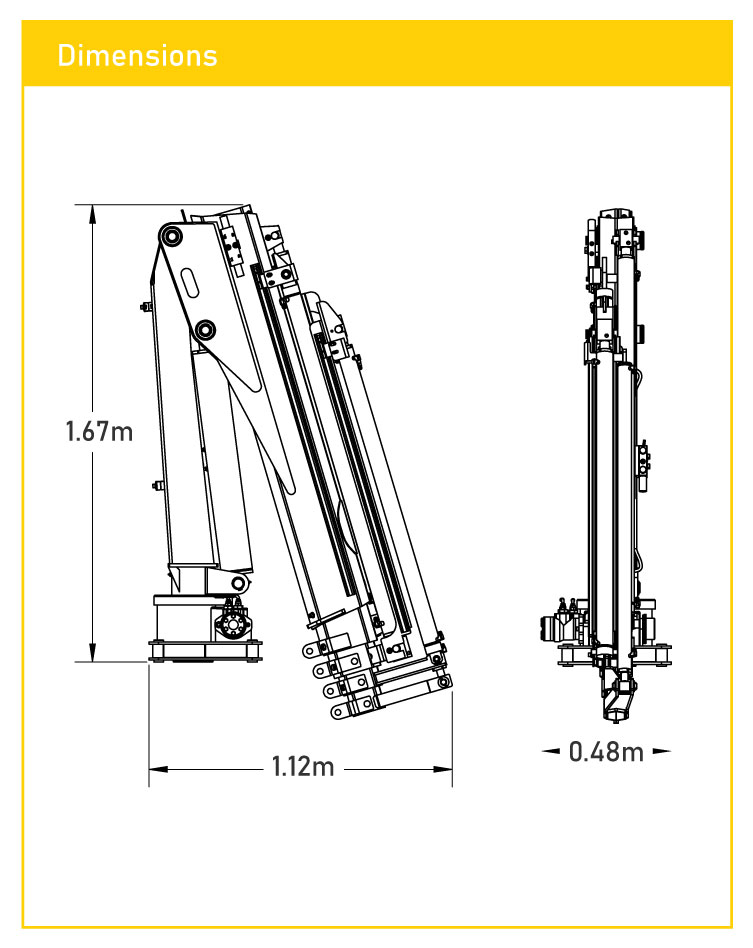

Stowed Crane Height	1.63m	1.63m	1.63m
Stowed Crane Length	0.92m	0.92m	0.92m
Stowed Crane Width	0.37m	0.37m	0.37m
Mounting Spaces	0.37m	0.37m	0.37m
Price	POA	POA	POA

Additional Info

Our big lifter. The QL350 is a proven serious lifting performer on many light trucks, seed drills and small fishing and work boats plus a range of many other applications. The crane’s powerful, smooth operation allows you to get the job done safely and efficiently.
