QL450 Compact Crane

by Quicklift®

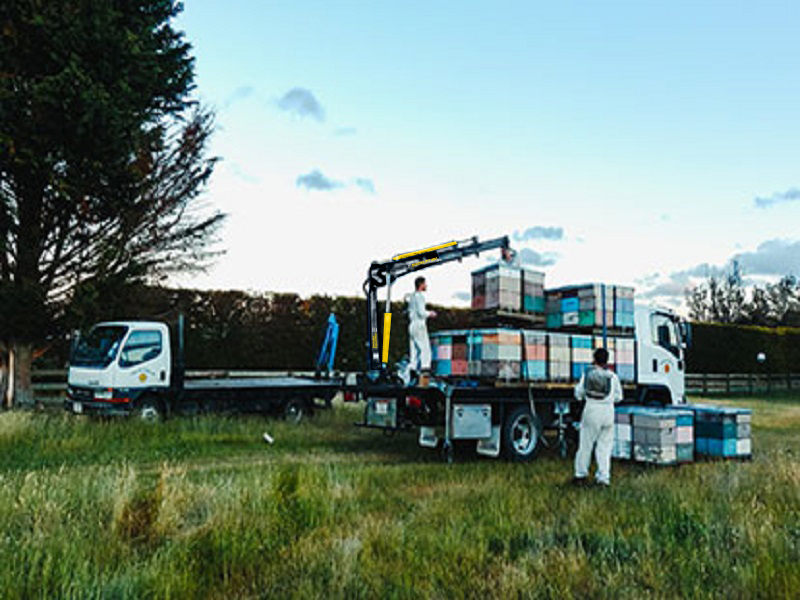

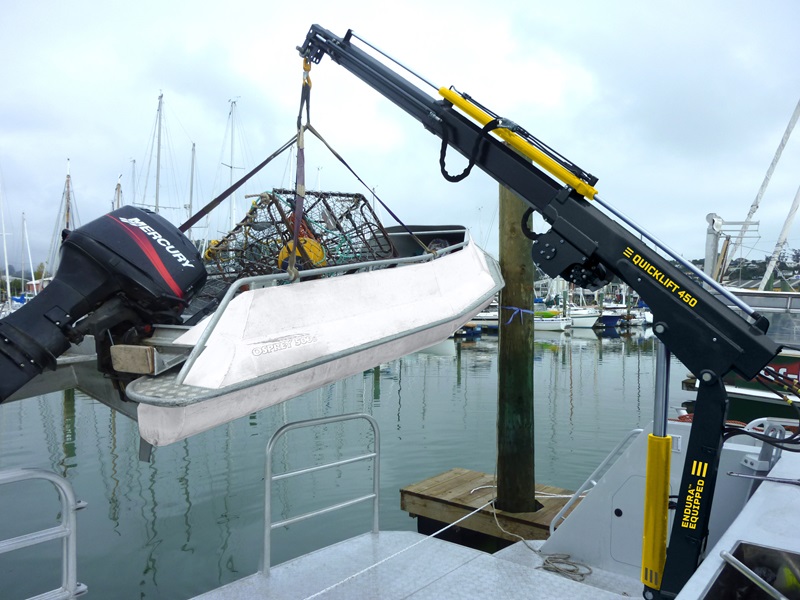

The QL450 is a proven serious lifting performer on many light trucks, seed drills and small fishing and work boats plus a range of many other applications. The crane’s powerful, smooth operation allows you to get the job done safely and efficiently.

This is the ideal model for applications where reach is critical to lift out or over objects, like loading or unloading a trailer.

Quicklift® 450 cranes offer:

  • Horizontal reach of up to 6.07m
  • Lift up to 2280KG
  • Compact foot print and stowing position
  • Extensive accessory options
  • Marine grade paint finish available
  • A modular installation system
From

$21,410.00

Excl GST and freight

Features

Power options:

  • 12 or 24 Volt battery
  • Petrol power pack
  • PTO/pump

Accessories

Accessory options including:

  • Radio remote control
  • Hydraulic winch
  • Electric winch
  • Marine grade paint finish
  • Stabiliser pads
  • Lifting attachments
  • Base Frame Kit Set with mounting plate

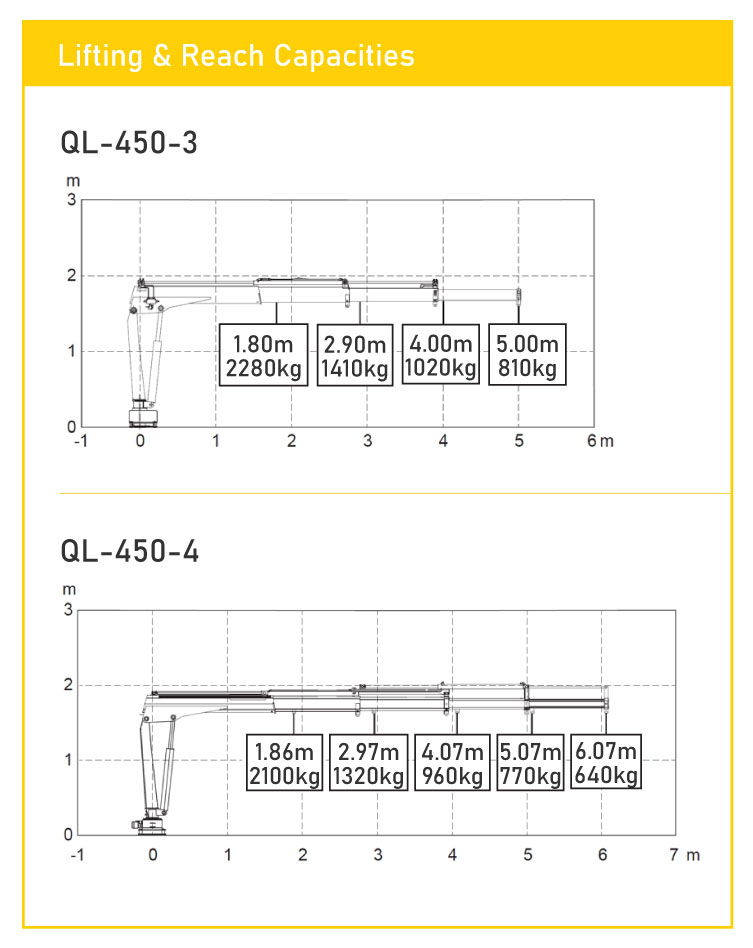

Specifications

QL450-3 QL450-4
Size T/M 3.9 3.9
Max Lift 2280kg 2100kg
Distance at Max Lift 1.8m 1.86m
Max Reach 5m 6.07m
Weight at Max Reach 810kg 640kg
Standard Crane Weight 350kg 350kg
Base Frame Weight 125kg 125kg

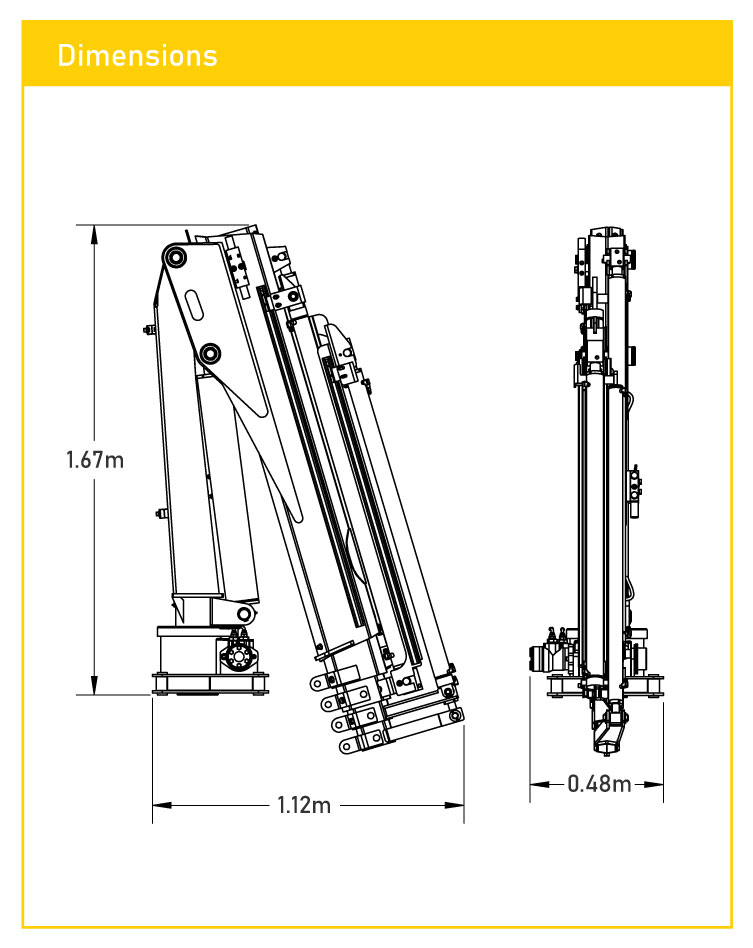

Stowed Crane Height 1.67m 1.67m
Stowed Crane Length 1.12m 1.12m
Stowed Crane Width 0.48m 0.48m
Mounting Spaces 0.37m 0.37m

Additional Info

Warranty
3 year warranty for structural parts (base column and boom) and 12 months for all other components.
