FEATURES

Trailer Body

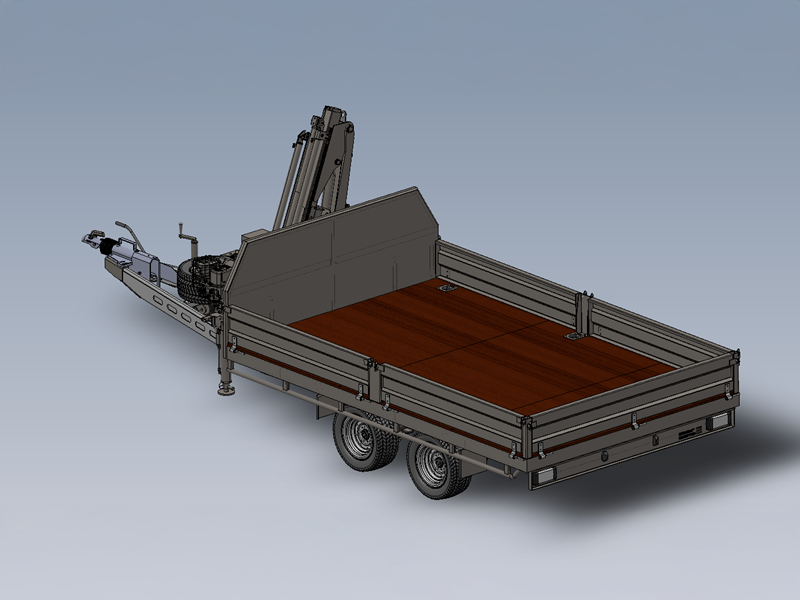

• Custom-built tandem axle flatbed 3500kg rated trailer
• Deck size: 3300mm (L) x 1950mm (W) x 18mm Plytech decking
• Equalizing spring suspension system
• Hydraulic override braking system
• Fitted with 185/13″ 8-ply tyres on spoked steel wheels
• 250mm high Drop-down sides, rear tailboard with fixed headboard
• Reinforced crane-mounting frame
• Reinforced drawbar for crane installation
• All steel surfaces blasted and painted in RAL 7012 Basalt Grey

Deck & Usability

• 6x flush-mounted certified internal tie-down points
• 3500kg rated trailer
• Fully Certified trailer, tie points, and crane mounting, including Crane certification.
• Includes 12-month WOF, 12-month registration, and number plate

Quicklift 150-3 Model Crane

• 3 hydraulic extensions, maximum reach of 3.5m
• Max lift of 1140kg
• Fully hydraulic slew with adjustable stop positions
• Proportional manual control levers with overload relief
• Pressure gauge & emergency stop
• Certified lifting hook
• Supplied with crane operator manual
• All hydraulic control hosing and fittings included

Powerpack System

• Honda petrol engine with electric start
• Hydraulic pump mounted to engine
• 12V battery housed in weather-protected box, wired to engine
• Complete plumbing from control unit to hydraulic system
• Hydraulic stabiliser leg beam and 2x front-mounted stabiliser legs
